OR1000 Optical Reciever-SA
by QFRF

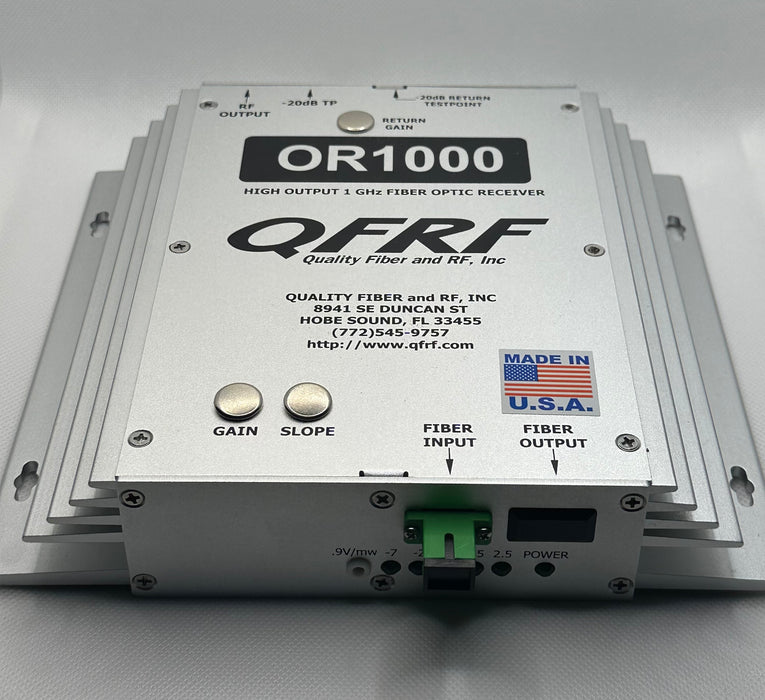

The UL-listed OR1000 one-way fiber receiver is wall-mountable and features -5 to +3 dBm input range. It has a typical RF output of 48dBmV and a frequency response of ± 0.579 dB. Gain control is 20 dB, return loss is 75 dB, and slope control is 18 dB. Comp. tr. dbt is -67 dB, comp. 2nd ord. is -20 dB, and carrier to noise is 15.67 dB. Power dissipation is 30 watts at 24 VDC, and DC amperage is 2.0. The OR1000 is availible other configurations upon request, and compatible with DOCSIS 3.0 85/108 Split. Supports 1 GHz (analog) and 200 MHz (digital) bandwidth.
